Sany Heavy Industry Medium Sized Crawler Excavator

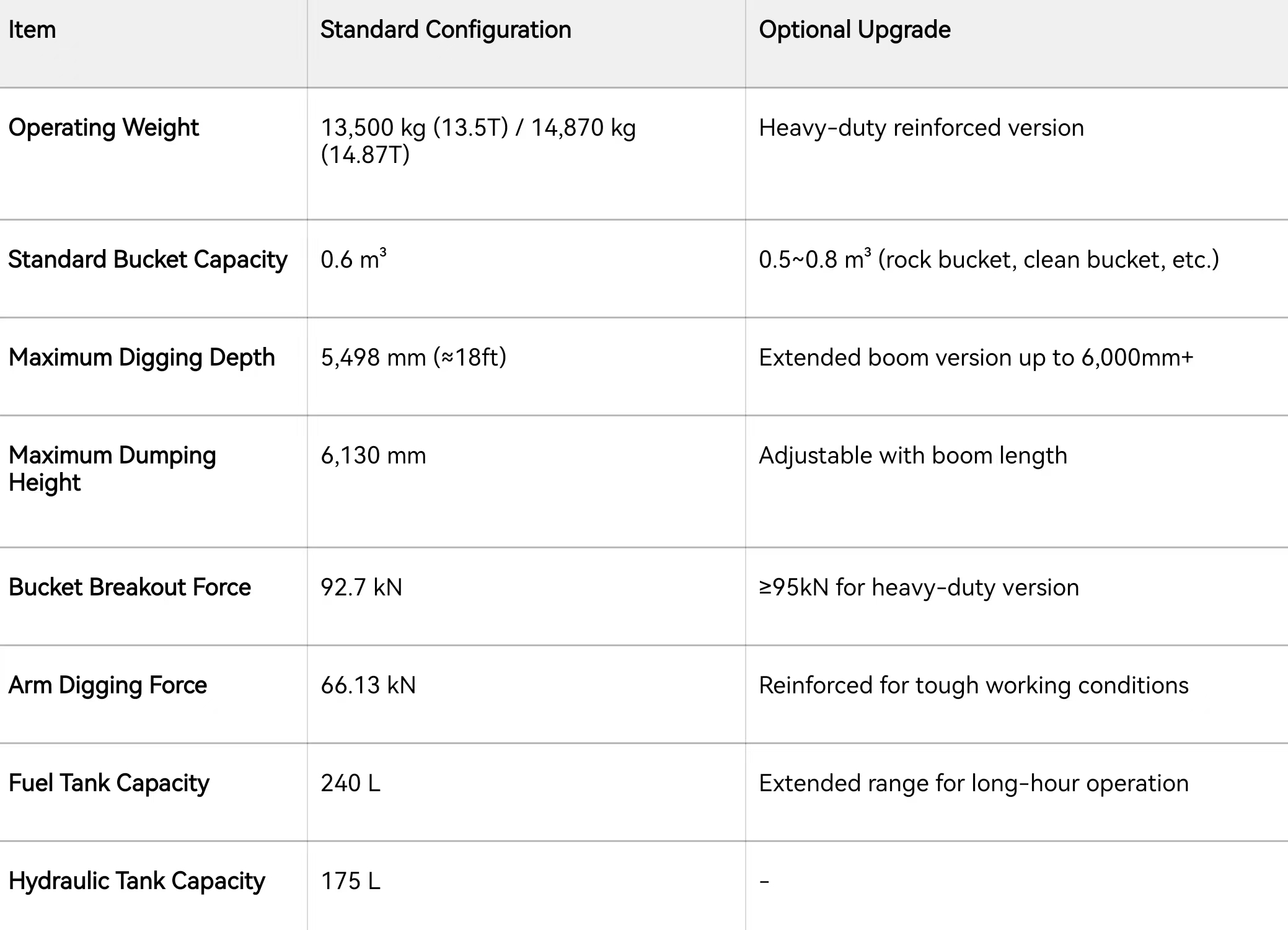

This excavator has a standard operating weight of 13500 kg 13.5T and can also be configured at 14870 kg 14.87T with an optional heavy-duty reinforced version available. It is equipped with a standard 0.6 m³ bucket, and optional bucket capacities ranging from 0.5 to 0.8 m³ including rock buckets and clean buckets are offered to adapt to different working scenarios. The standard maximum digging depth is 5498 mm approximately 18ft, and an extended boom version can reach over 6000mm for deeper excavation needs. The standard maximum dumping height is 6130 mm, which can be adjusted by modifying the boom length. The machine delivers a bucket breakout force of 92.7 kN and an arm digging force of 66.13 kN; a heavy-duty reinforced version with a bucket breakout force of ≥95kN is available for demanding working conditions. It features a 240 L fuel tank for standard use, with an extended-range fuel tank option to support long-hour continuous operation, and a 175 L hydraulic tank capacity.
