Hook Machine Tablet

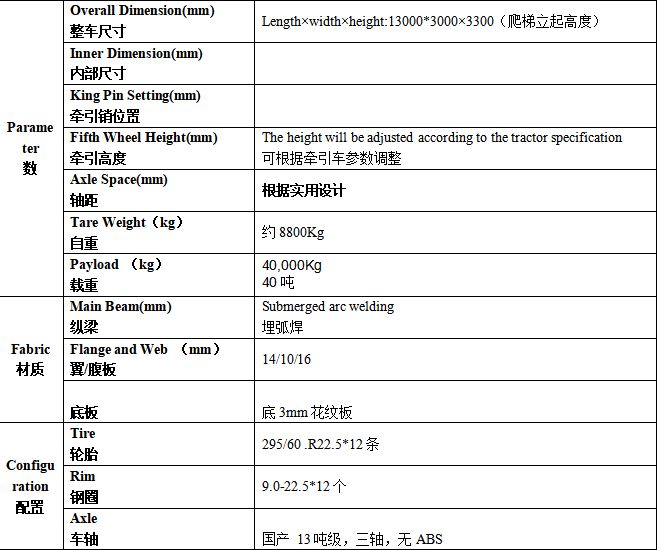

This heavy-duty semi-trailer is engineered for reliable and efficient bulk transport, built with robust specifications and durable components. It features an overall dimension of 13000×3000×3300mm (including the mechanical ladder height), with a tare weight of approximately 8800kg and a rated payload capacity of 40000kg (40 tons).

Constructed for strength, the main beam uses submerged arc welding for enhanced structural integrity, paired with 14/10/16mm flange and web plates. The cargo floor is reinforced with a 3mm checkered plate, ensuring wear resistance and stability during transport.

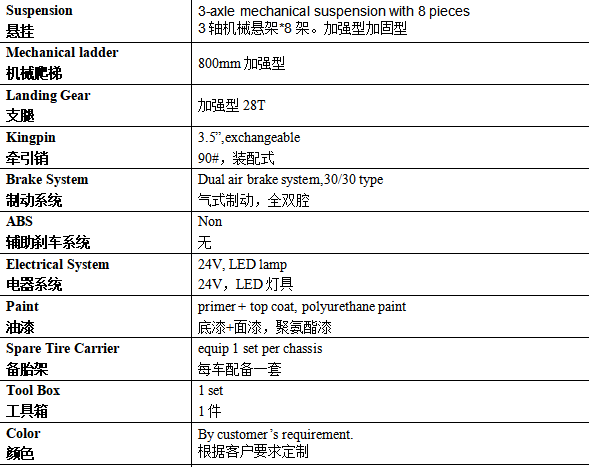

Equipped with 13-ton domestic tri-axles (without ABS), the trailer rides on 12 units of 295/60.R22.5 tires mounted on 9.0-22.5 rims. Its suspension system consists of a heavy-duty 3-axle mechanical suspension with 8 reinforced sets, while an 800mm heavy-duty mechanical ladder provides safe access. The trailer is fitted with a reinforced 28T landing gear, a 3.5″ (90#) exchangeable kingpin, and a dual-circuit air brake system (30/30 type). Additional features include a 24V LED electrical system, polyurethane paint with primer and topcoat, one spare tire carrier, one toolbox, and customizable color options to meet specific operational requirements.
