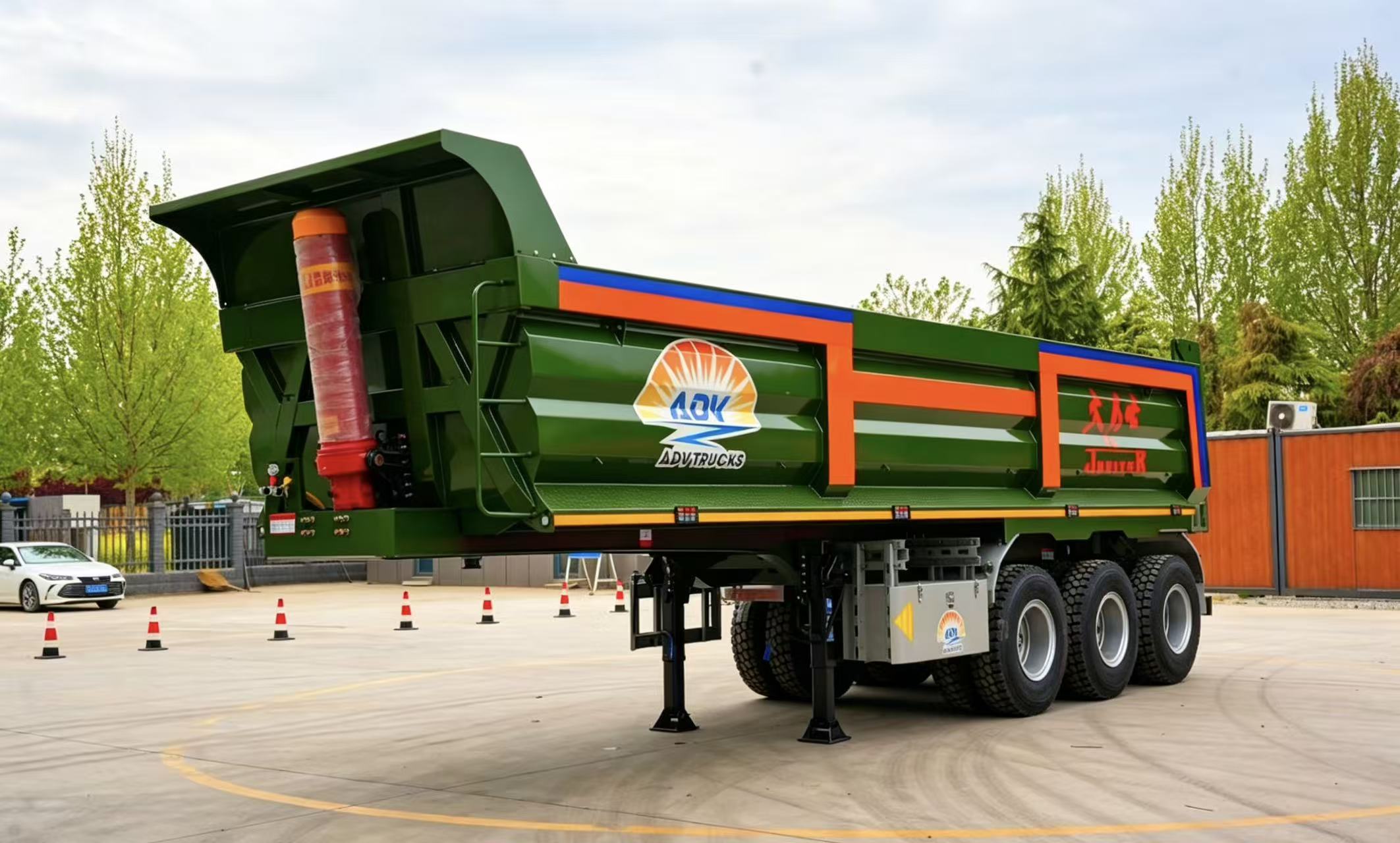

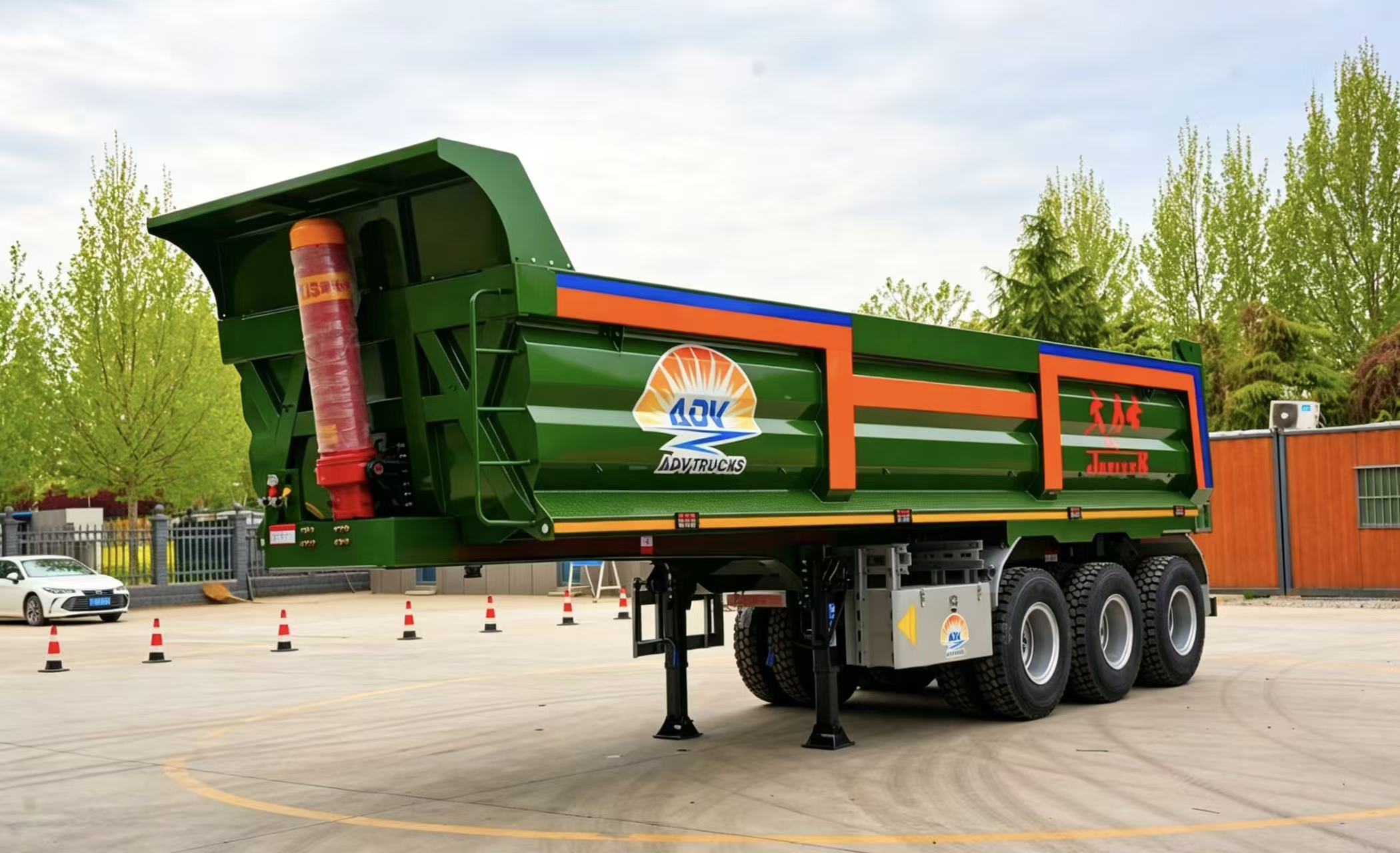

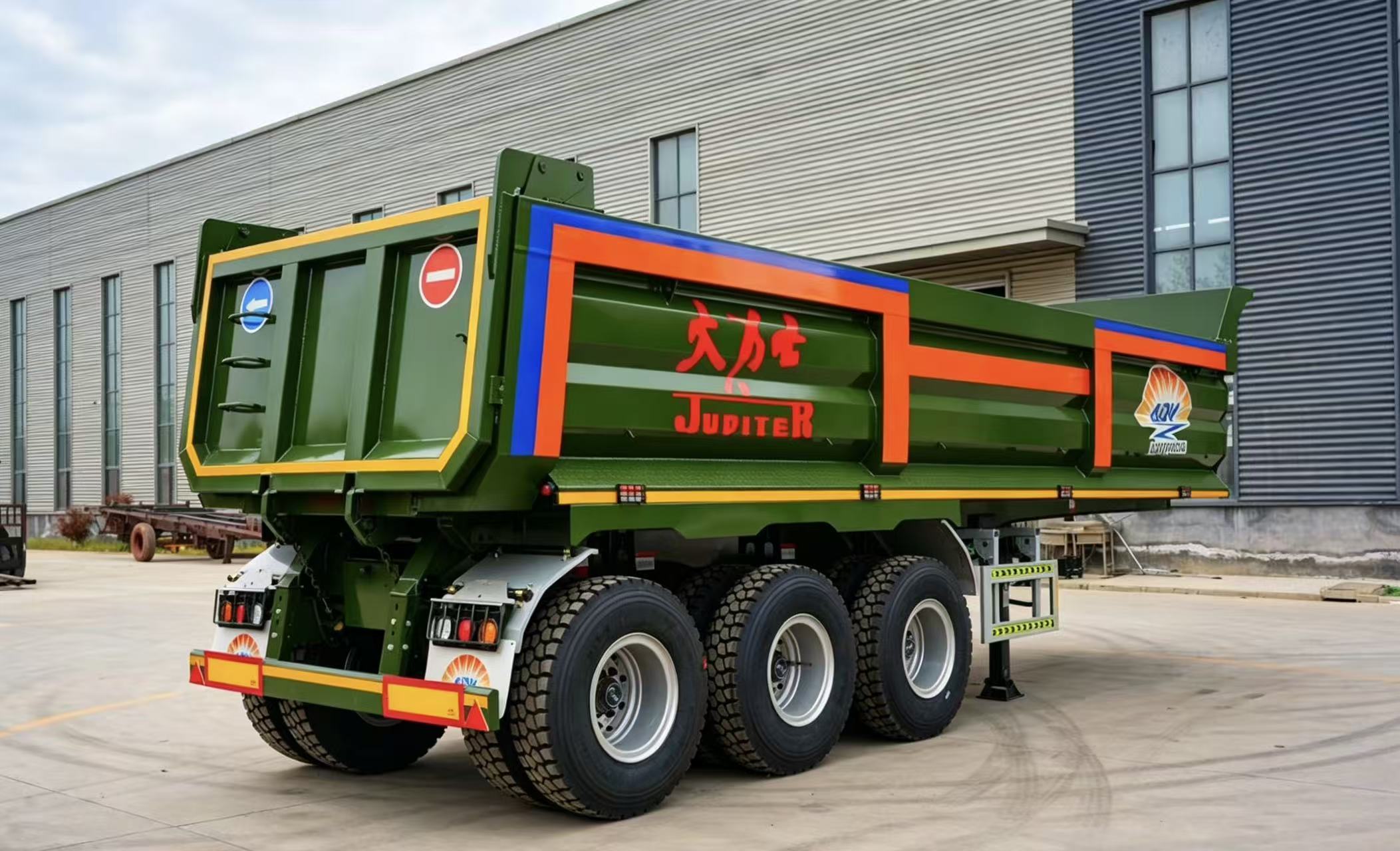

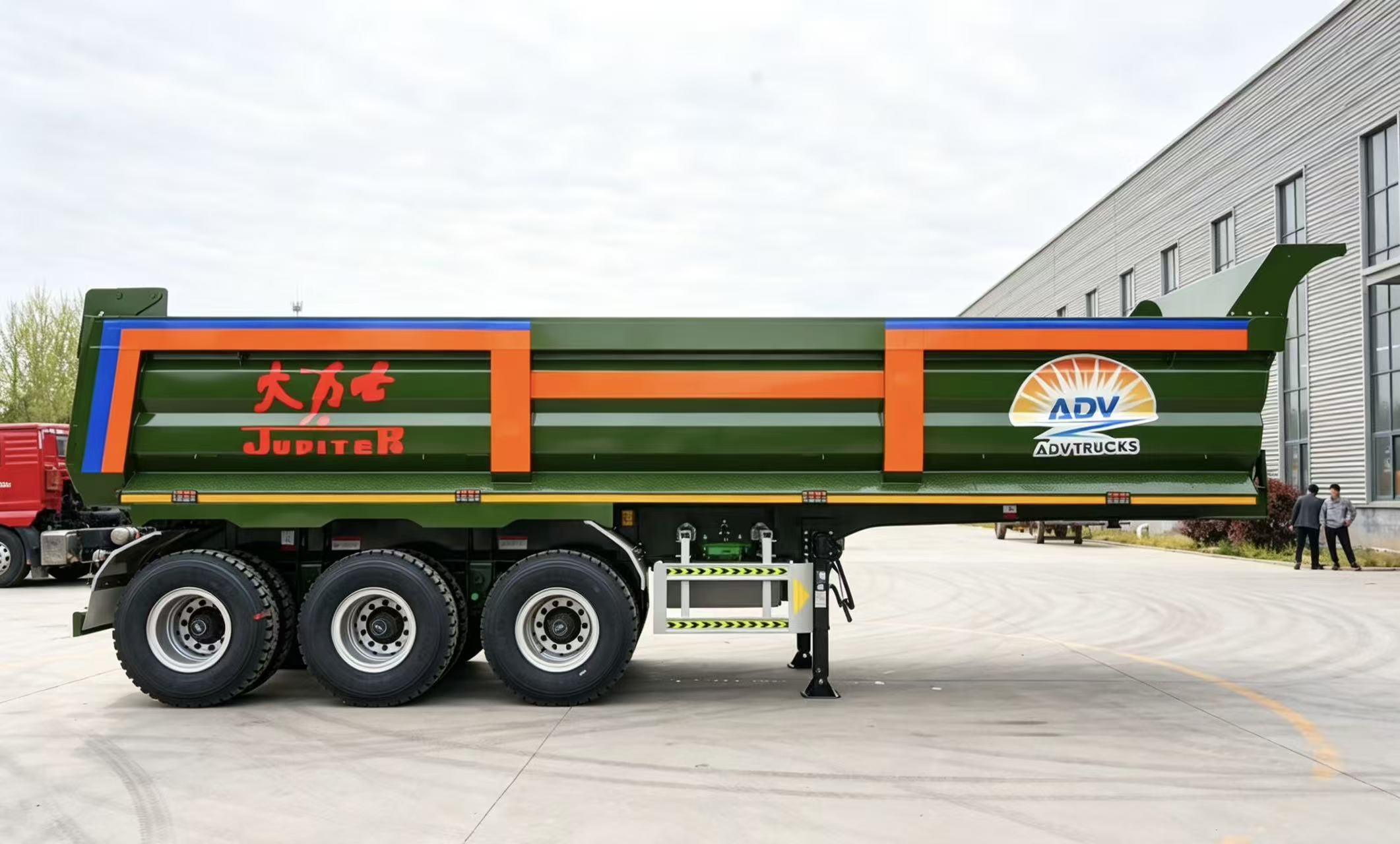

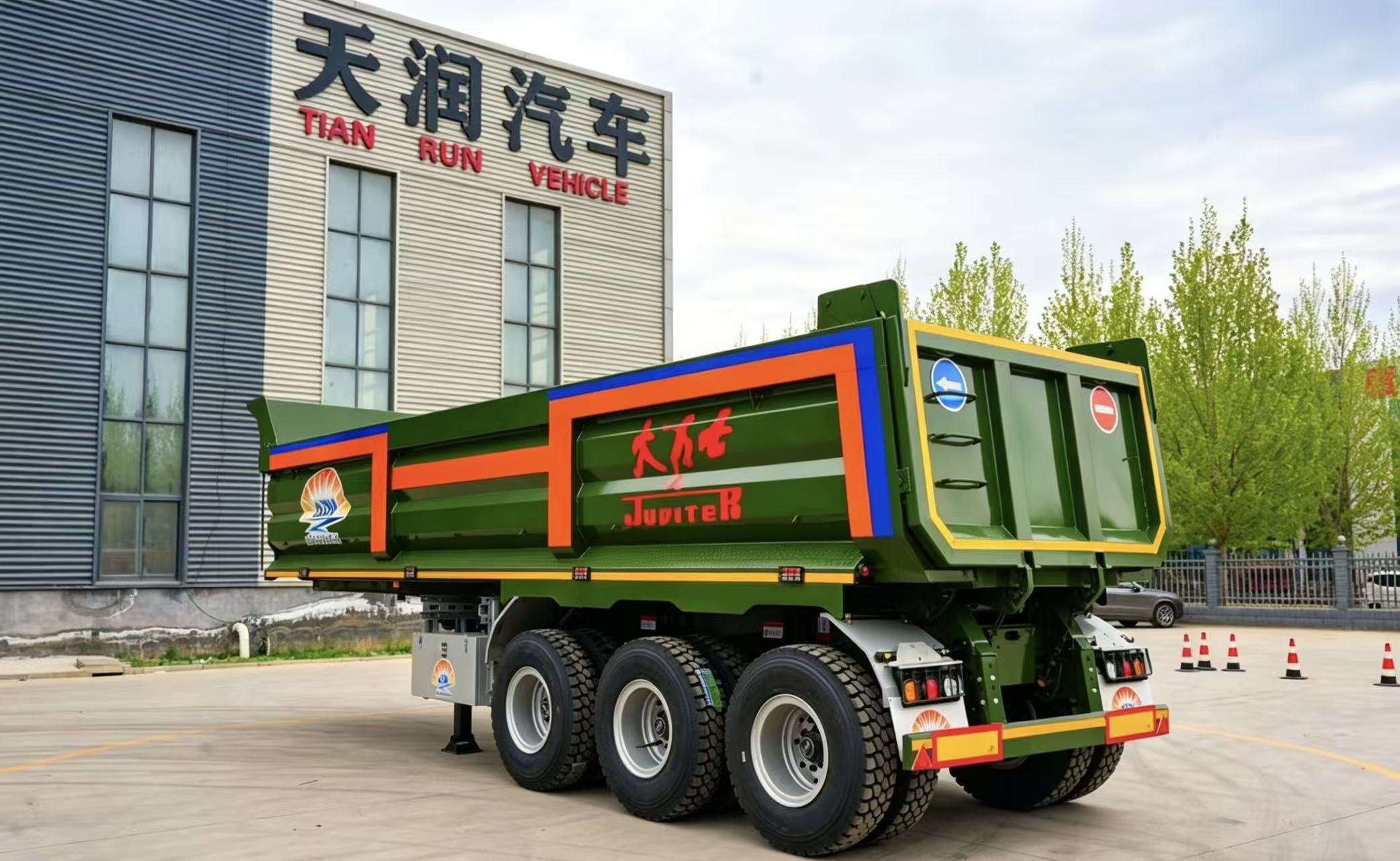

Three Axle Rear Dump Semi-trailer

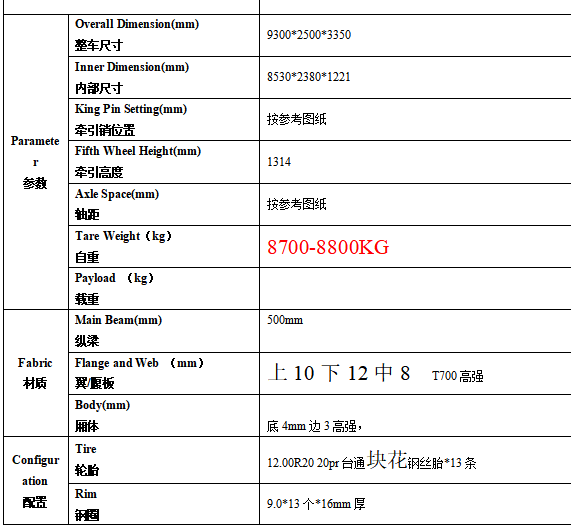

This heavy-duty dump semi-trailer is engineered for reliable bulk material transport, combining robust construction with high-performance components. With an overall dimension of 9300×2500×3350mm and an inner cargo dimension of 8530×2380×1221mm, it offers a tare weight of 8700-8800KG and a customizable payload capacity to meet demanding operational needs.

Built for durability, the trailer features a 500mm main beam, with flange and web constructed from high-strength T700 steel (10mm upper, 12mm lower, 8mm middle). The cargo body uses high-strength steel (4mm floor, 3mm sides) for enhanced wear resistance.

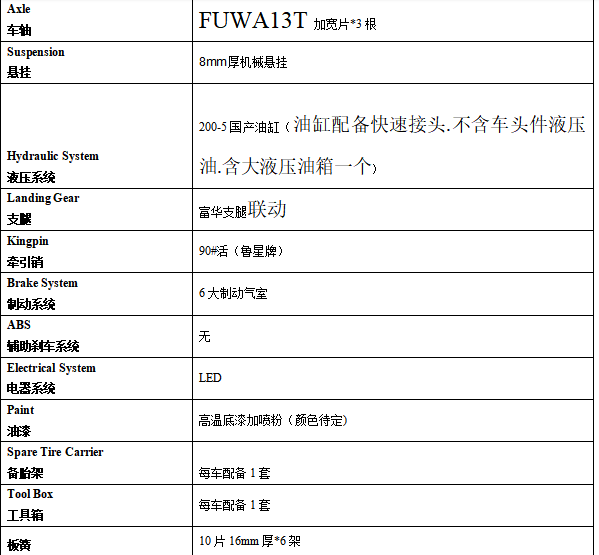

Equipped with FUWA 13T axles (3 units with widened pads), 8mm mechanical suspension, and 10-leaf 16mm thick leaf springs (6 sets), it delivers stable load-bearing performance. The hydraulic system includes a 200-5 domestic cylinder with quick connectors and a large hydraulic oil tank. Additional features include FUWA linked landing gear, a 90# Lu Xing brand kingpin, 6 large brake chambers, LED electrical system, high-temperature primer plus powder coating paint, one spare tire carrier, and one toolbox. Tires are 12.00R20 20PR all-position block-pattern steel wire tires (13 units), paired with 9.0×13 rims (16mm thick), ensuring reliability under heavy loads and harsh conditions.
