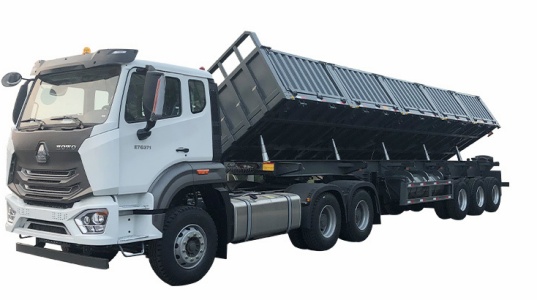

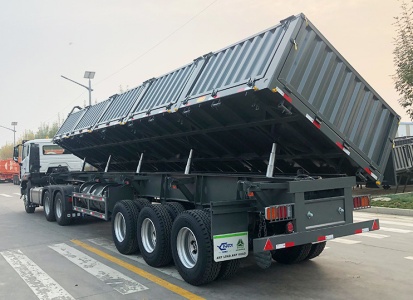

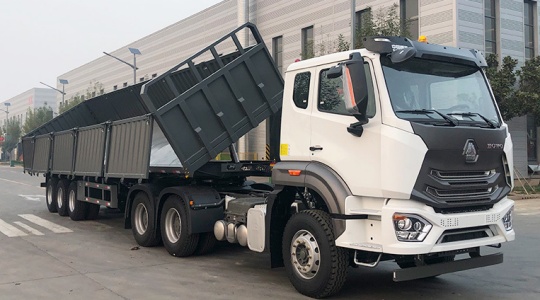

Self Dumping Overturned Semi-trailer

This heavy-duty tipper semi-trailer has overall dimensions of 9000mm × 2500mm × 3950mm and a 35 cubic meter capacity. It features a triple-axle setup with heavy-duty mechanical suspension, a 196 hydraulic cylinder system, 12 tires, a 90# traction pin, JOST landing gear, a WABCO braking system, and a 24V electrical system with LED lights for reliable operation.

Structurally, the trailer is built with a double-plate main beam for exceptional load-bearing strength and durability. The heavy-duty hydraulic cylinder with a larger diameter provides strong lifting power and a higher lifting height, ensuring stable operation and reducing the risk of tipping. Four auxiliary beams and cross balance beams reinforce the frame, while the grid structure on the side doors enhances their rigidity. Four flip brackets ensure even load distribution during unloading, minimizing stress and wear on the trailer. The widened and thickened leaf springs deliver excellent shock absorption, and the overall unique structural design effectively increases the payload capacity for demanding transport tasks.
